CSiBridge Express

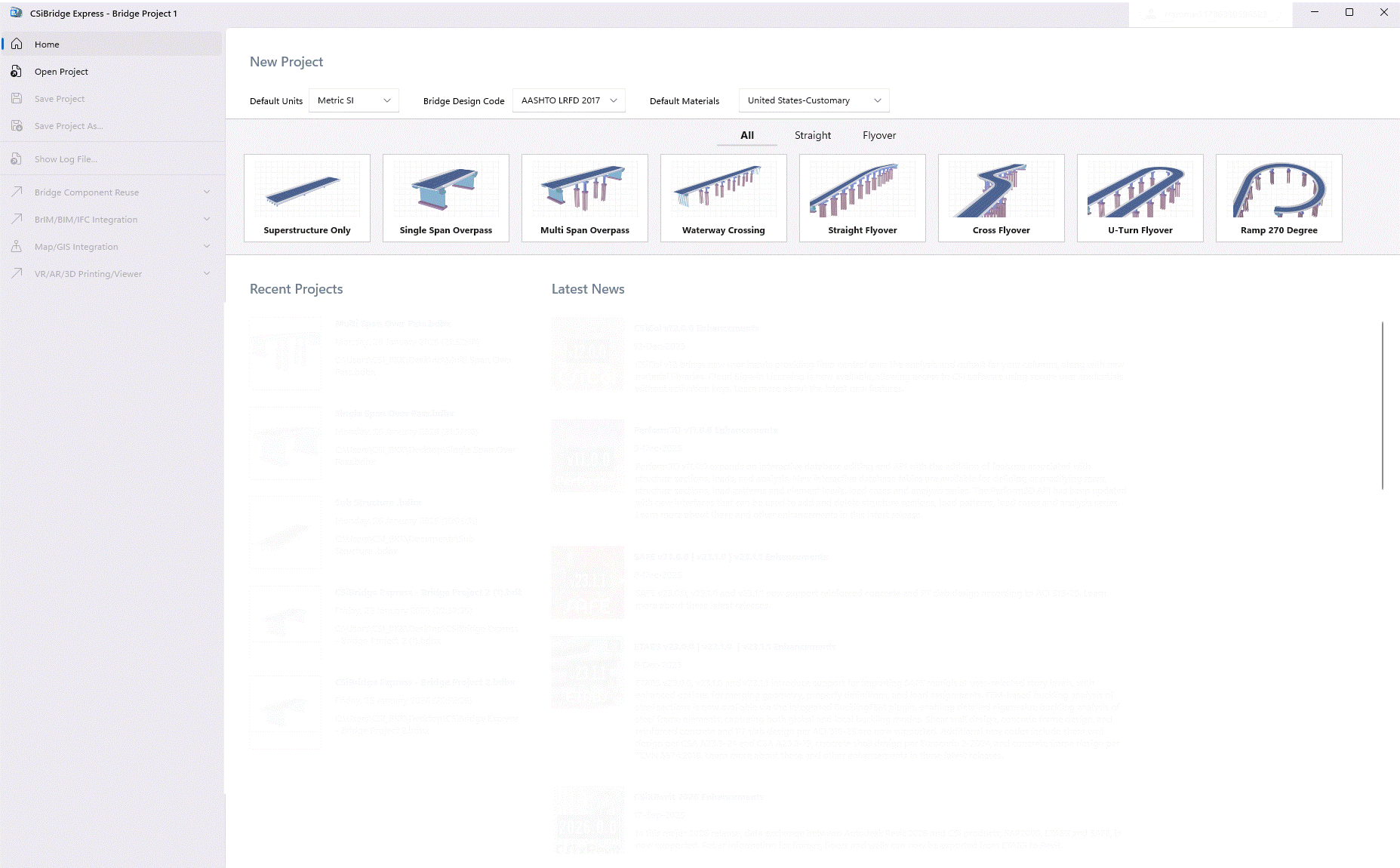

Bridge Template Types

CSiBridge Express offers pre-built templates for commonly encountered bridge configurations, allowing users to quickly start projects without building from scratch.

Superstructure Only
Single Span Overpass
Multi Span Overpass
Waterway Crossing
Straight Flyover

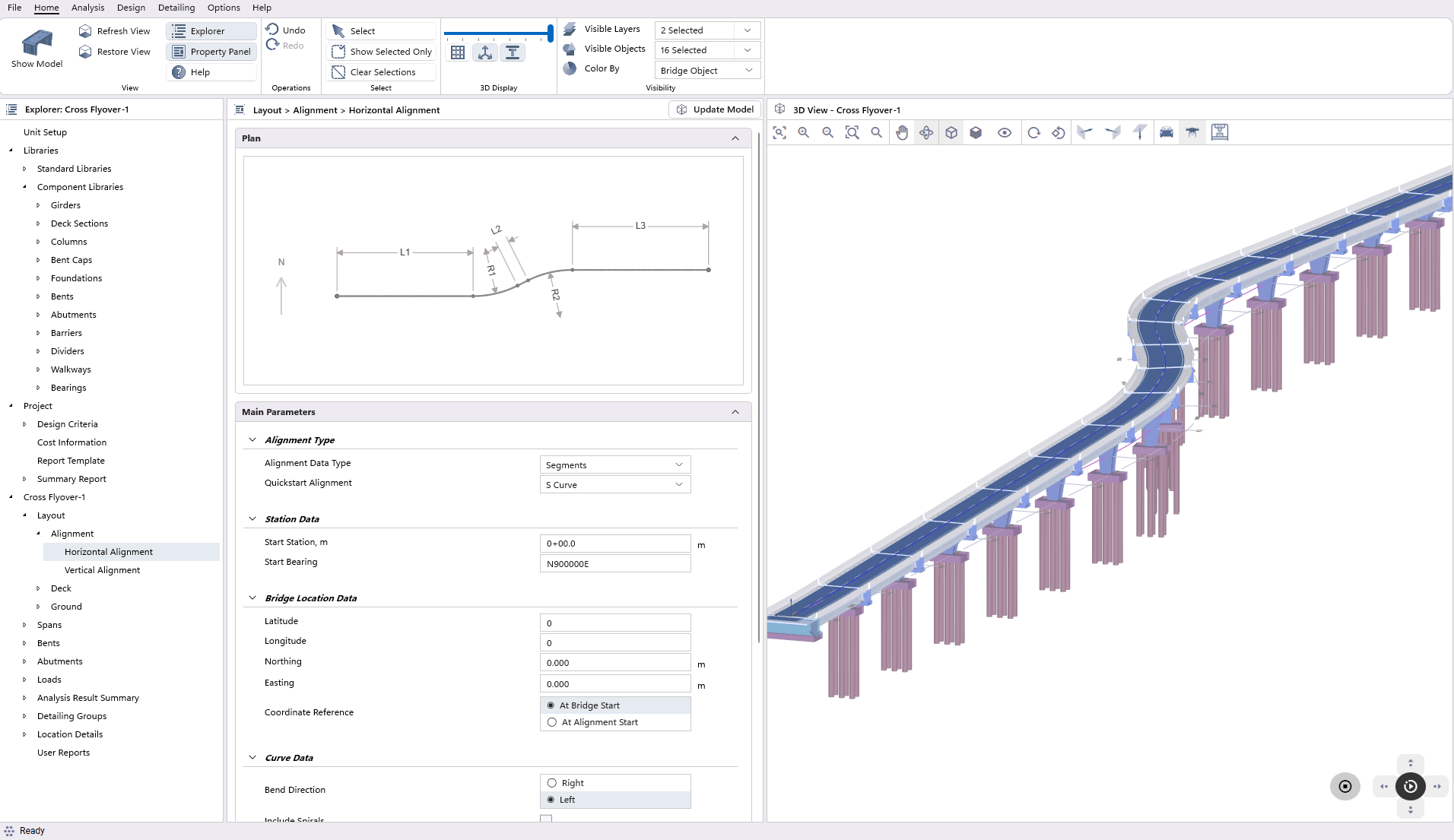

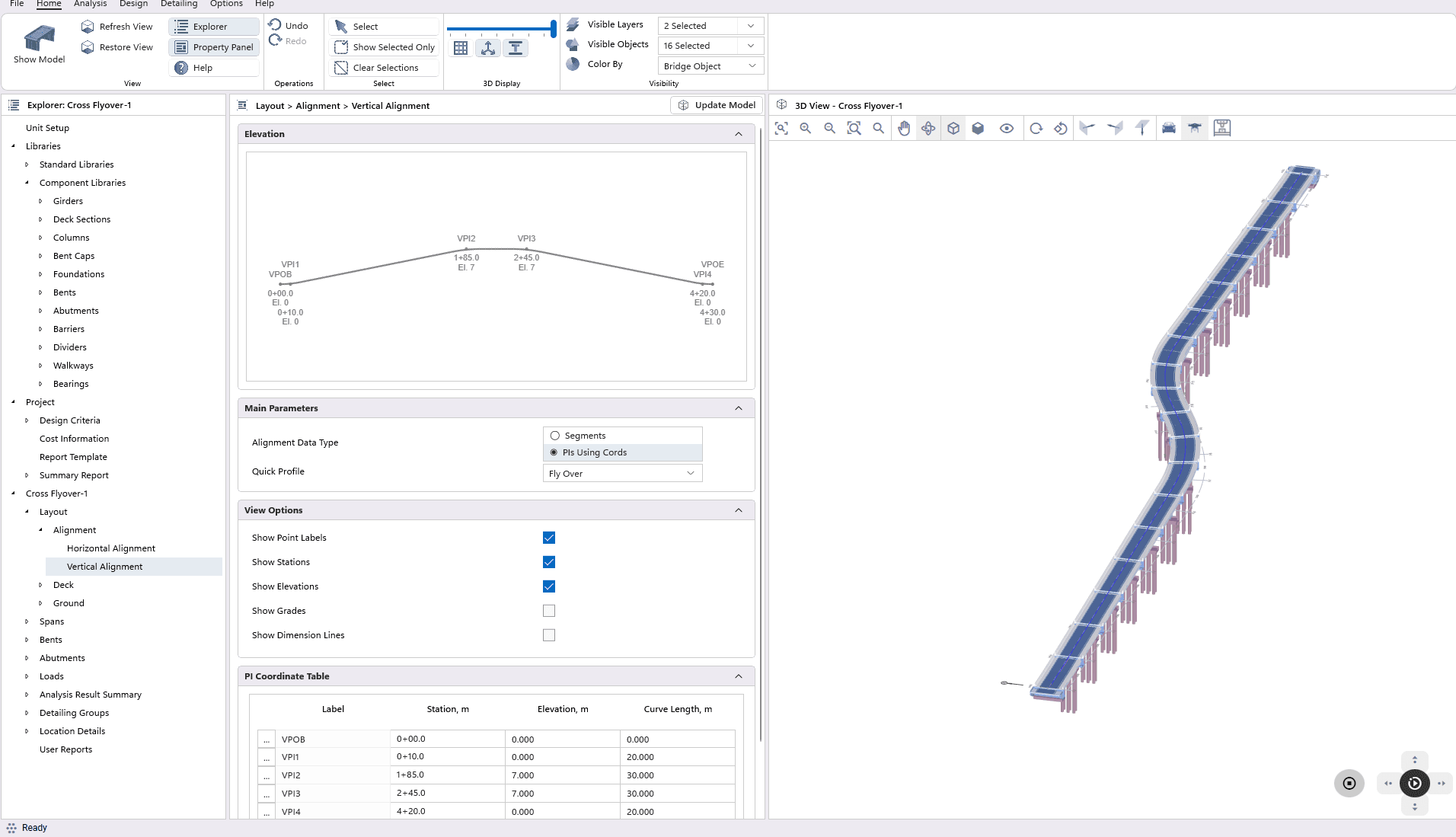

Cross Flyover
U-Turn Flyover
Ramp 270 Degree

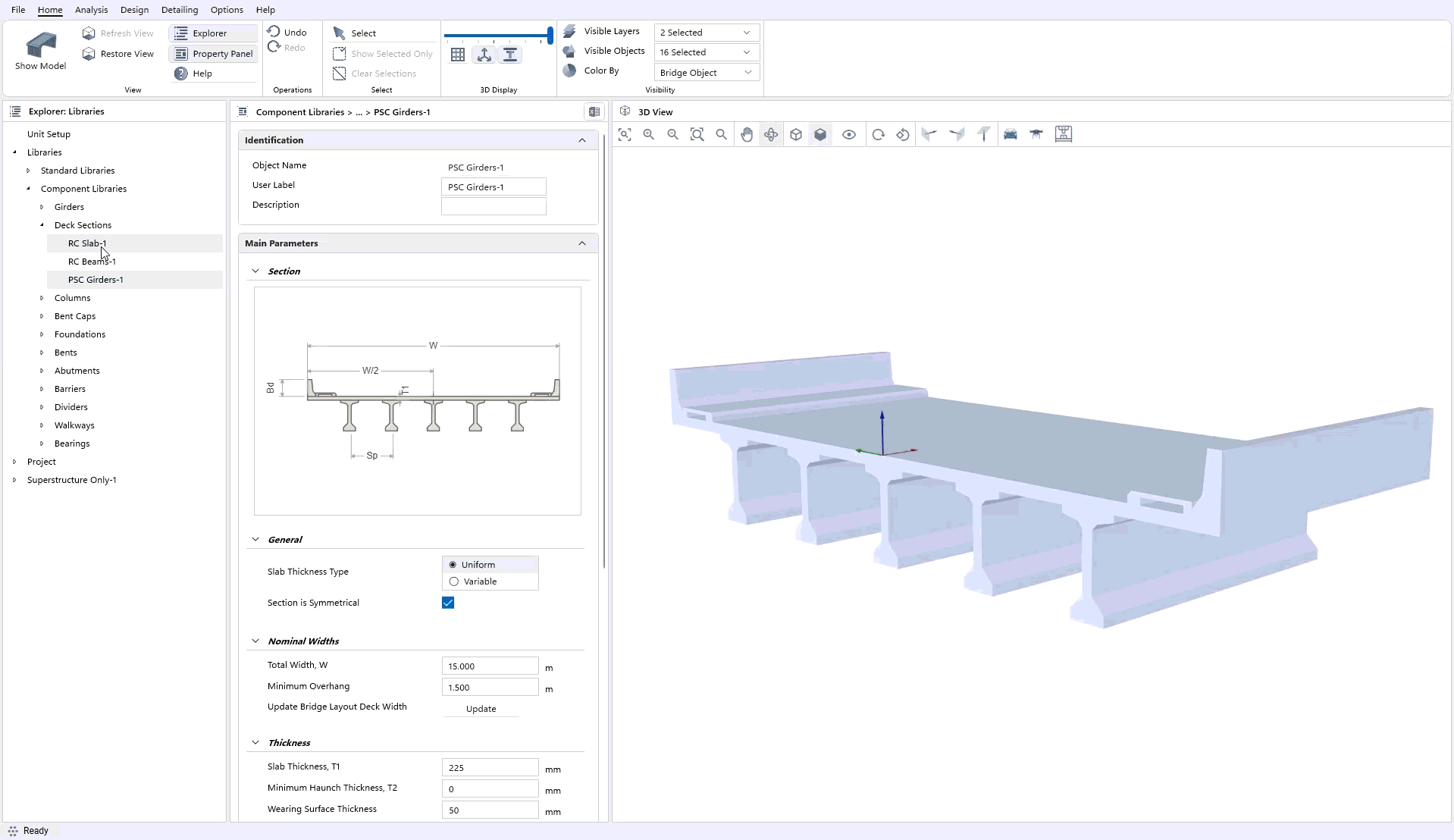

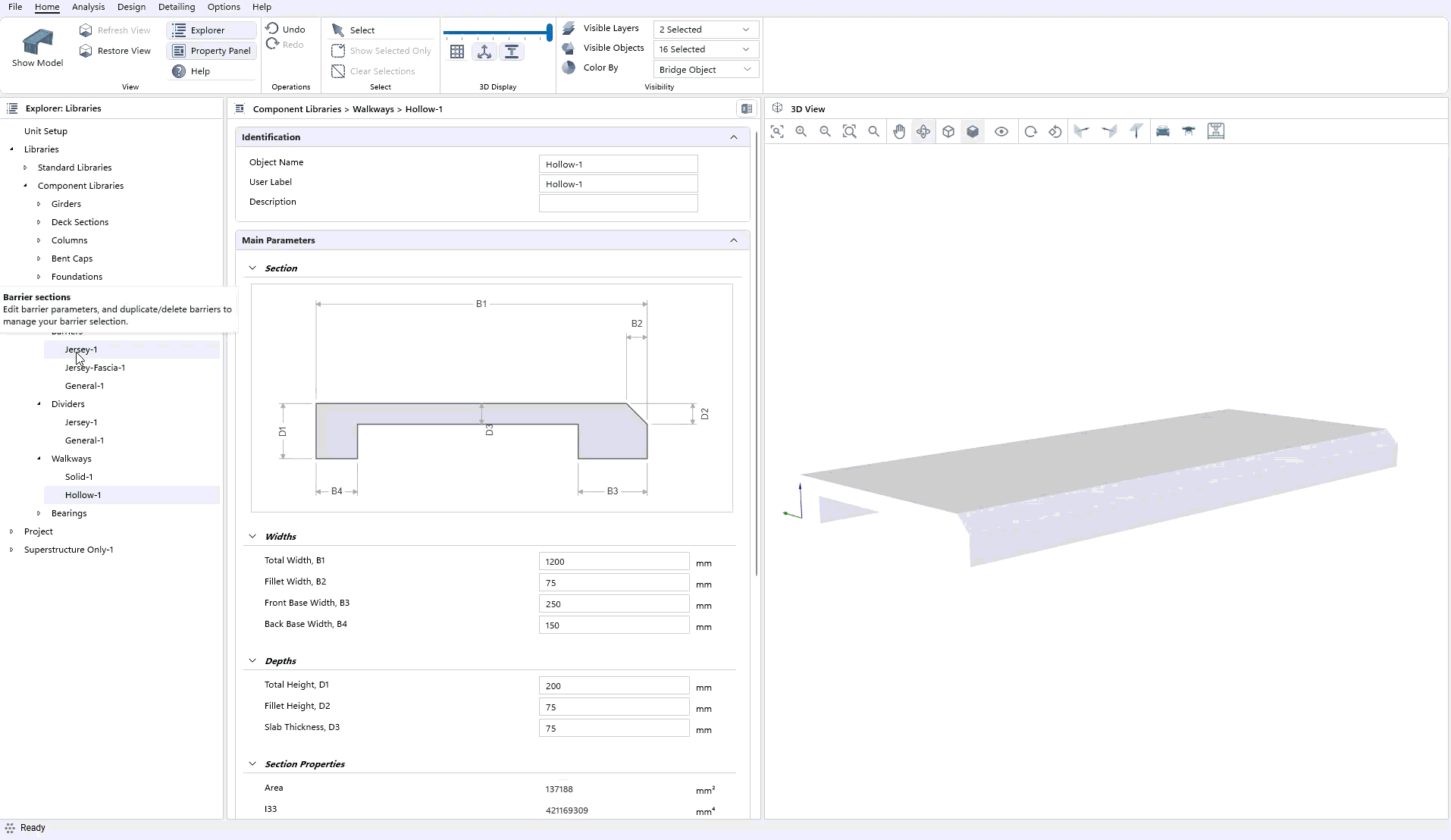

Deck Section Types

CSiBridge Express provides three distinct deck section types, each suited for different span lengths, load requirements, and structural configurations.

RC Slab
RC Beams
PSC Girders

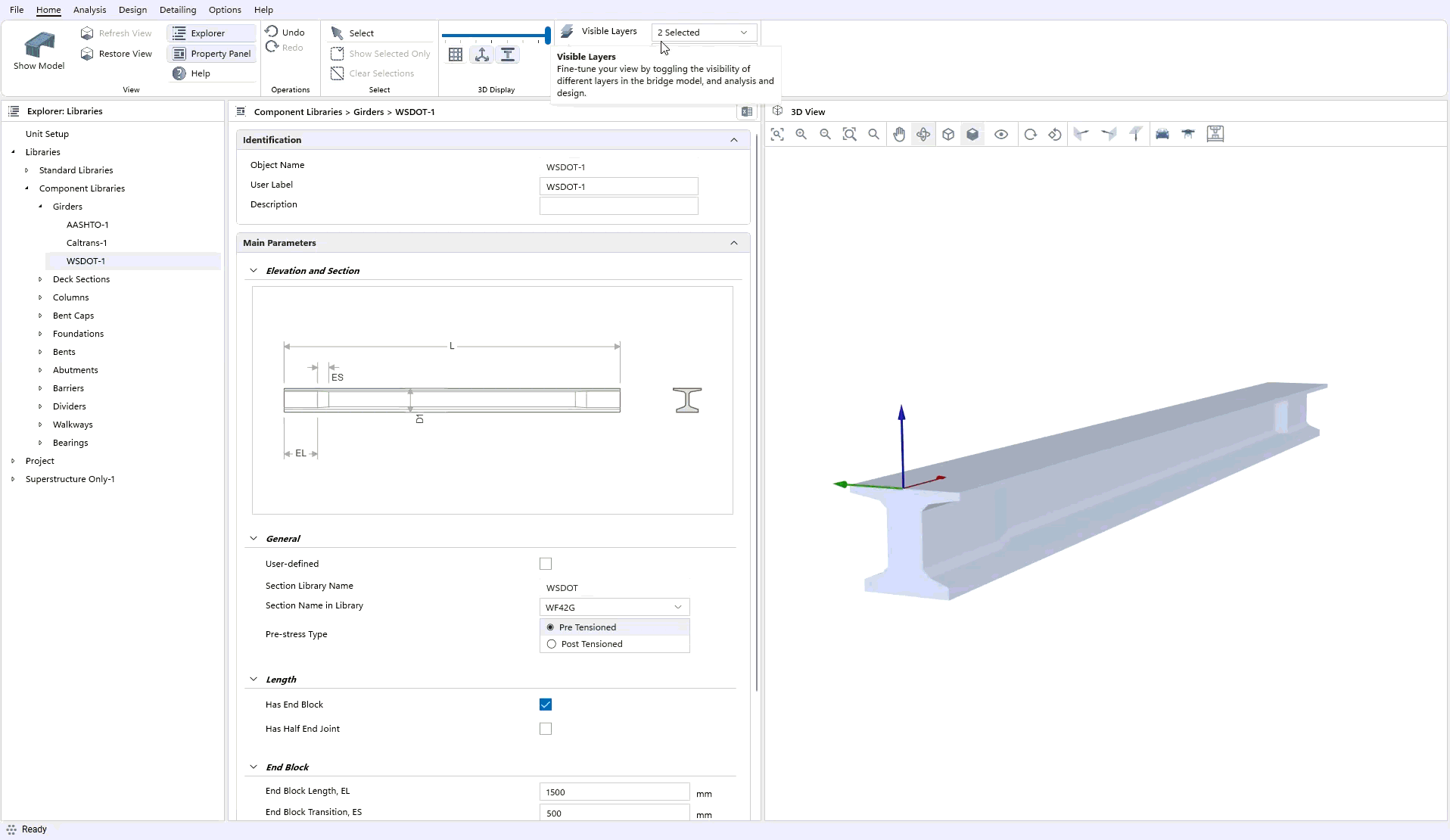

Girder Libraries

CSiBridge Express incorporates girder libraries compliant with AASHTO, Caltrans, and WSDOT standards, utilized for defining deck sections.The differences between the AASHTO, Caltrans, and WSDOT girder libraries primarily lie in their specific design standards, regional considerations, and structural requirements.

AASHTO standard sections
Caltrans specifications
WSDOT design standards

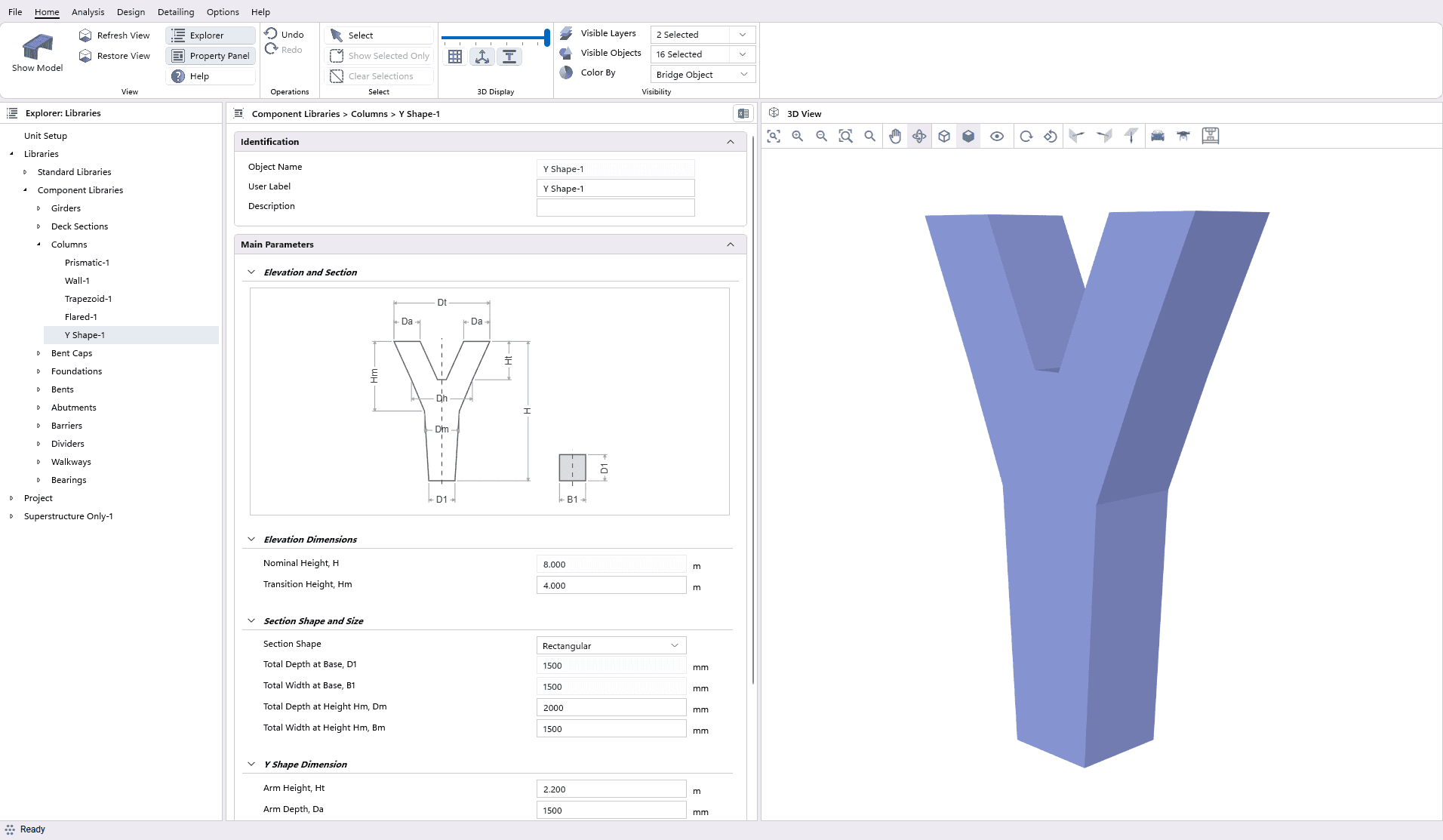

Column Types

The parameters and preferences available for each column section type are dynamically adjusted based on the selected section type.CSiBridge Express offers various column types to accommodate different structural requirements.

Prismatic
Wall
Trapezoid
Flared
Y-Shape

Bent Cap Types

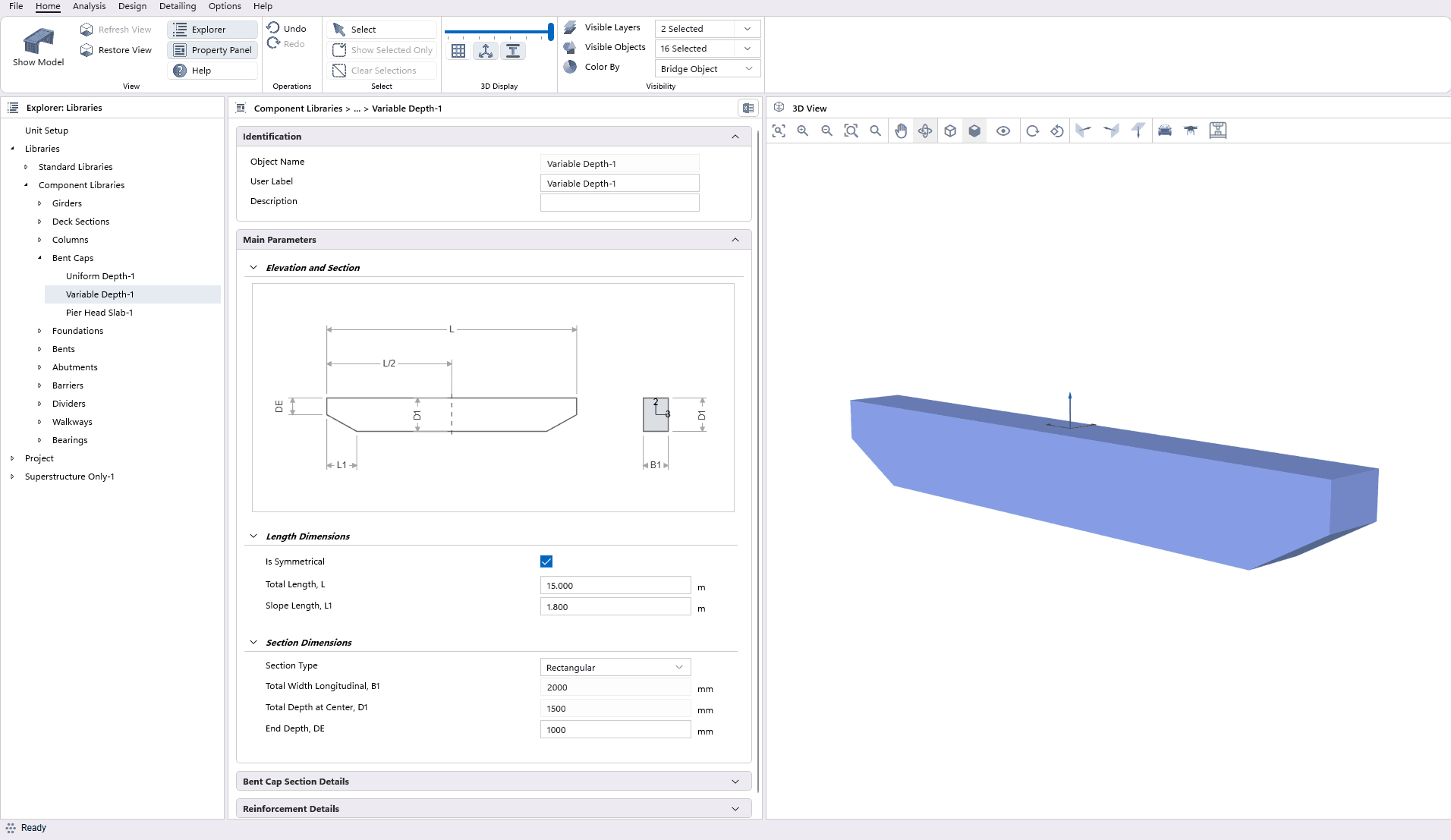

Users have the flexibility to expand their selection of bent cap sections by assigning different section shapes to any of the three bent cap types.CSiBridge Express includes Bent Caps with following configuration.

Uniform Depth
Variable Depth
Pier Head Slab

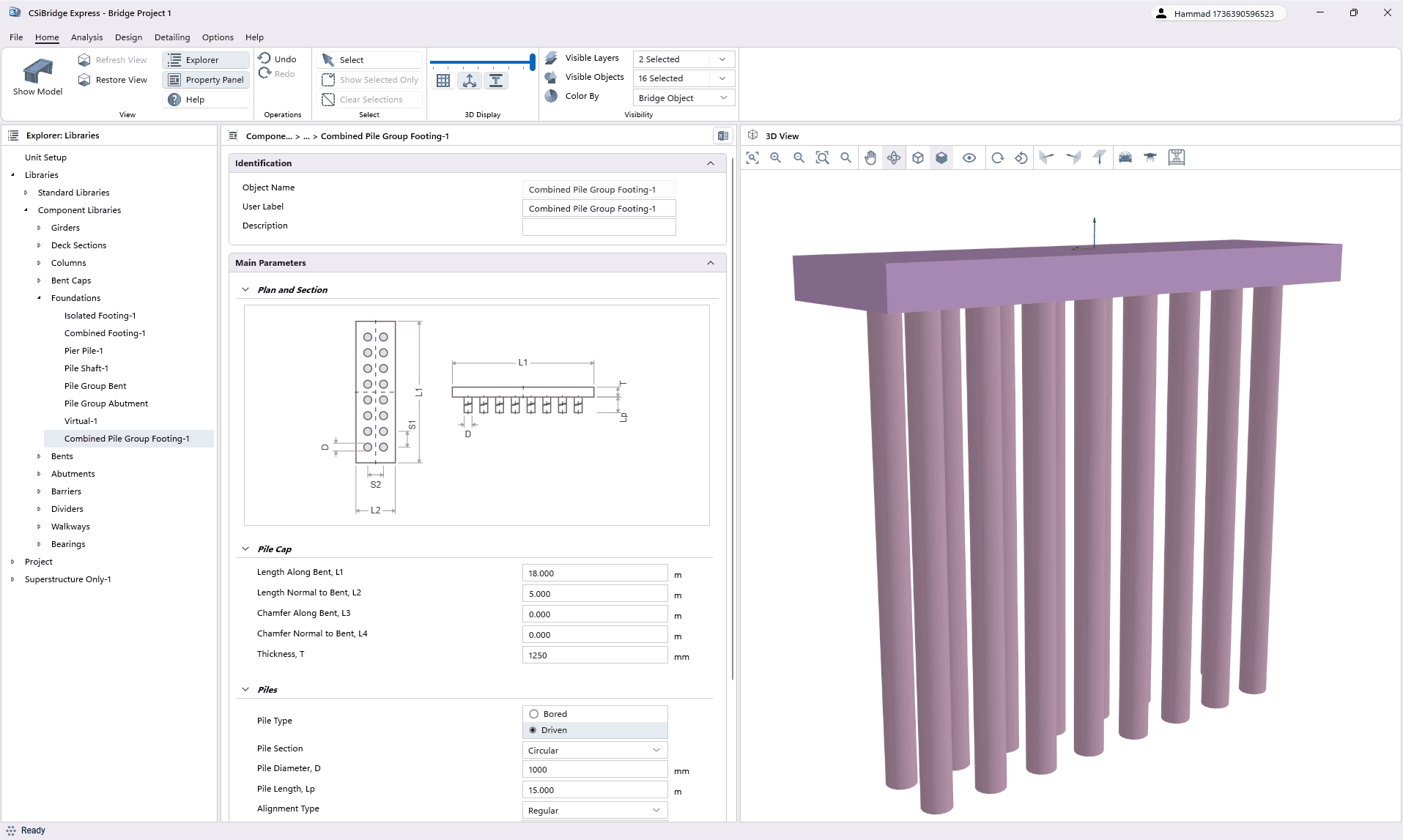

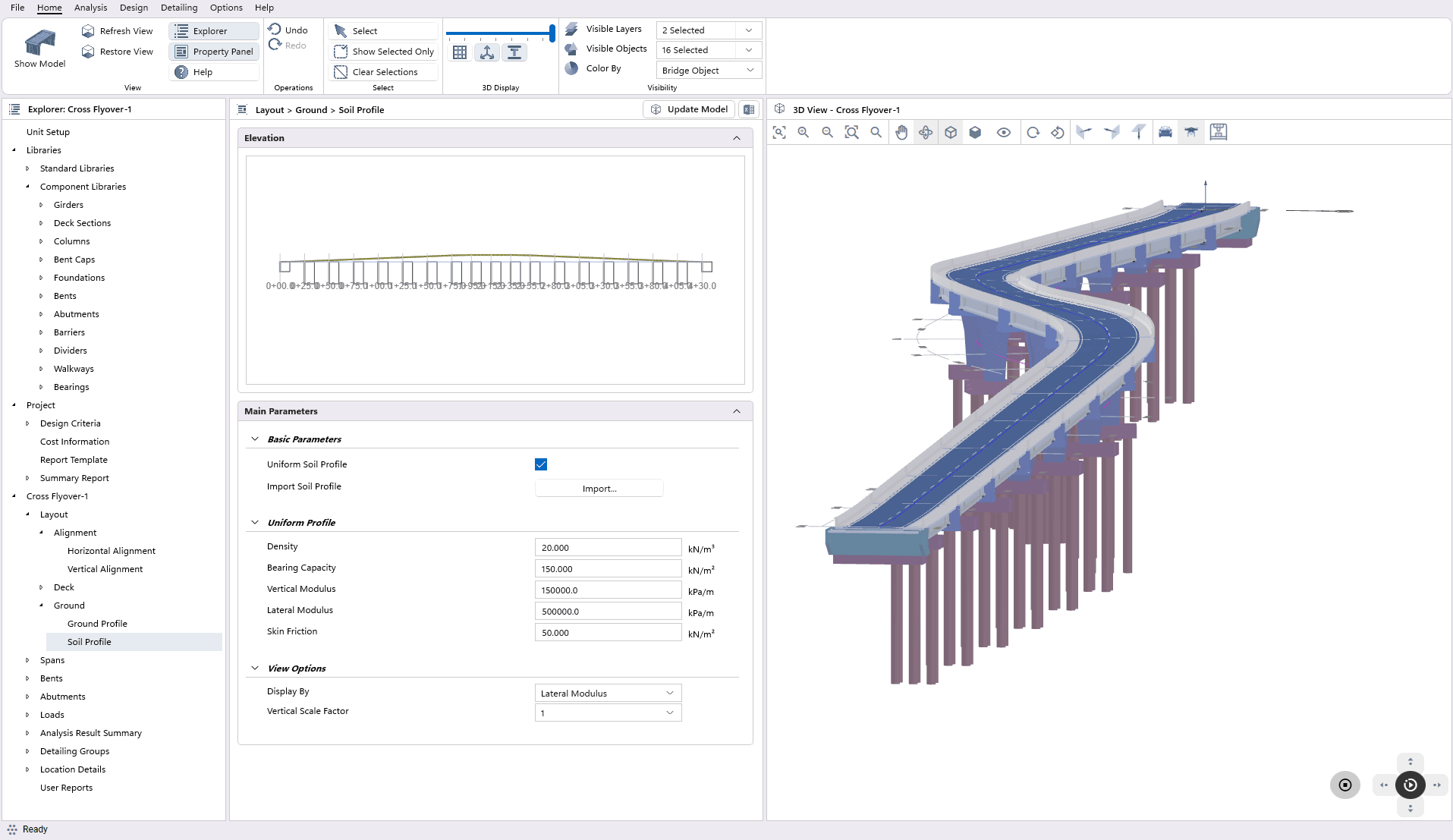

Foundation Types

CSiBridge Express provides various foundation options including shallow and deep foundations.

Isolated and Combined Footing
Pier Pile and Pile Shaft
Pile Group configurations
Virtual Support
Combined Pile Group Footing

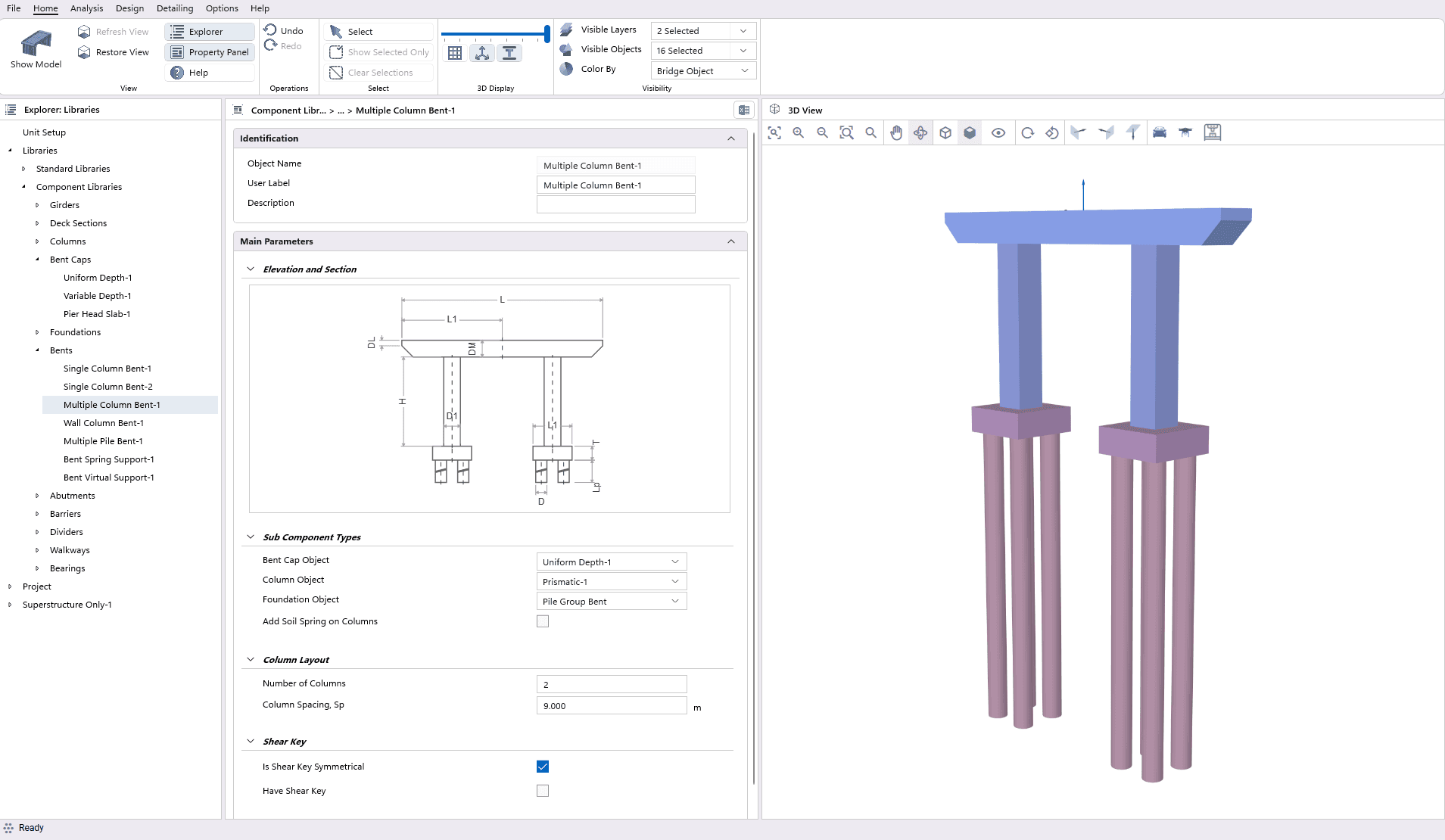

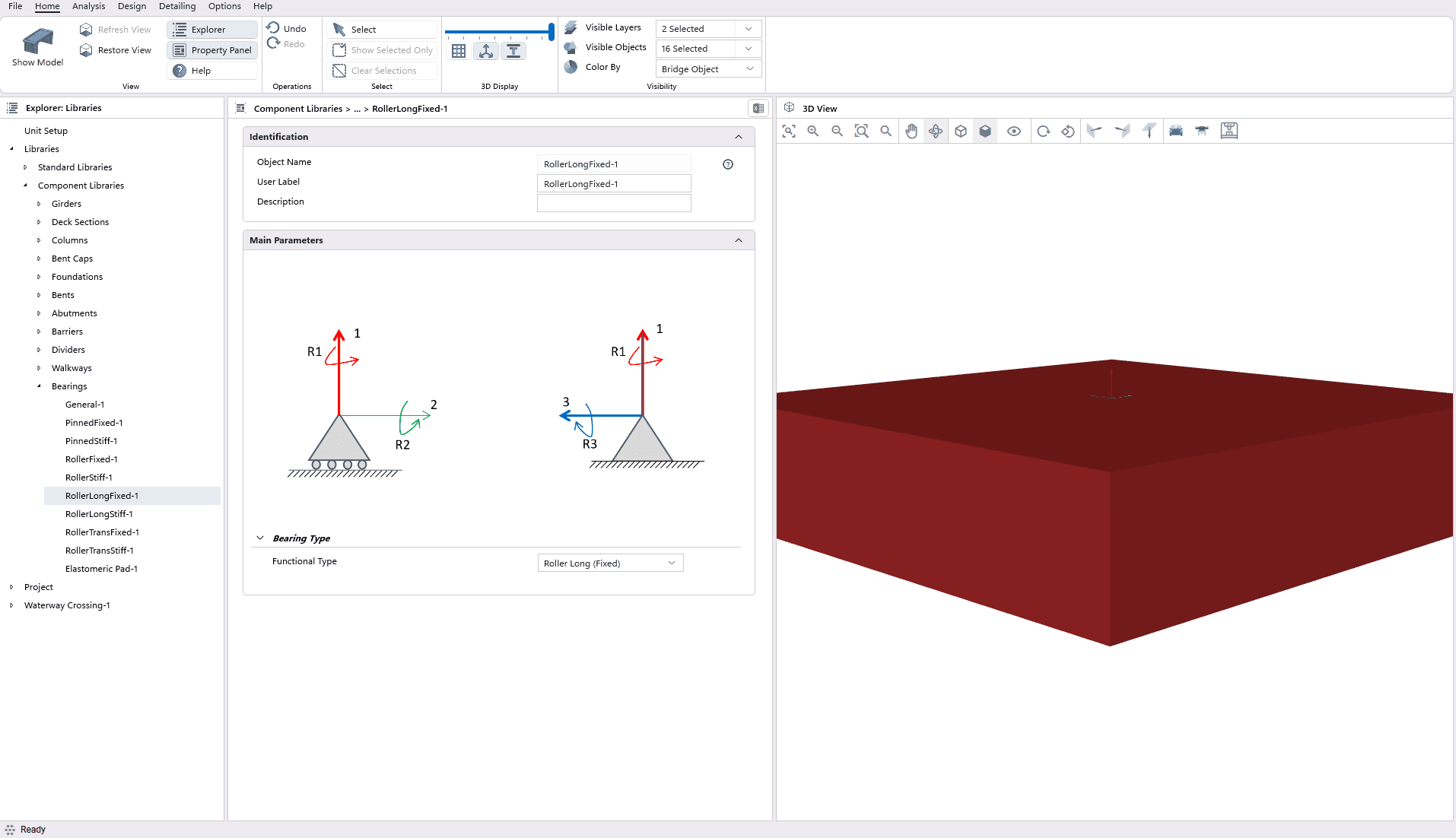

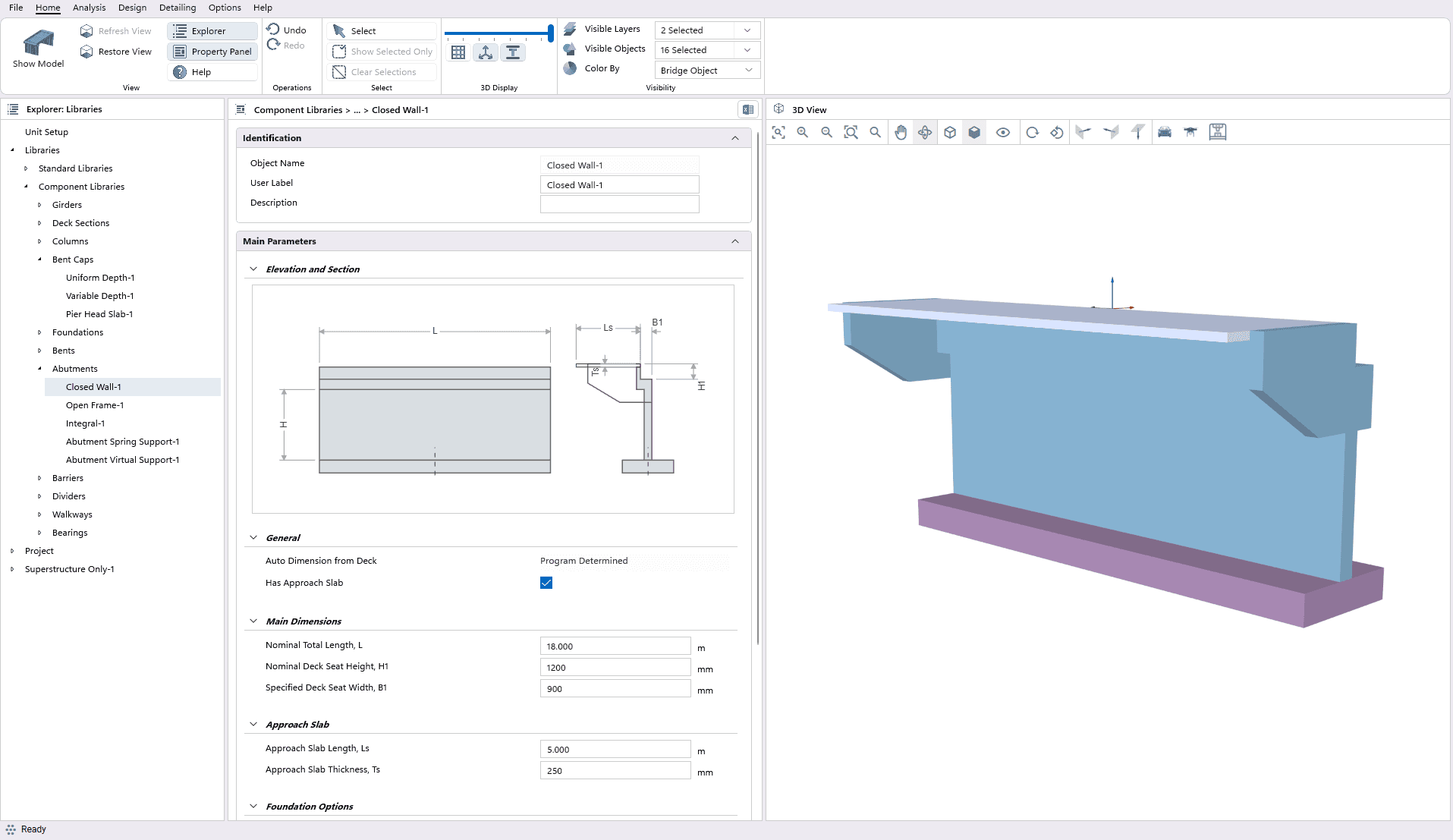

Bent

For each bent type, users have the flexibility to select the bearings, bent caps, columns, and foundation from a range of options linked to its component libraries.CSiBridge Express includes following Bent.
